アームカメラコンポーネントの作成
USpringArmComponentを継承してアームカメラコンポーネントを作成します。

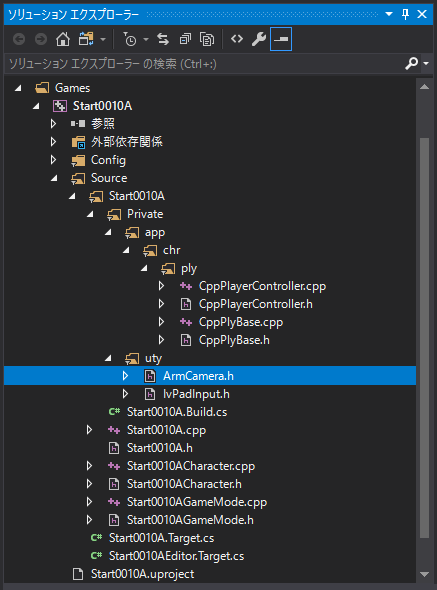

ファイル構成は以下ようになります。
utyにアームカメラコンポーネント(ArmCamera.h)を配置していす。
IvPadInput.hはKey入力用のクラスです。
ArmCamera.h
/**
* @file ArmCamera.h
* @brief アーム付きカメラ
* @author inuvatico
* @date 2020/11/01
* @version 1.0
* @copyright 2018 inuvatico
* Released under the MIT license.
* see https://opensource.org/licenses/MIT
* @par (new/Add/Change : 2020/10/17)
*
*/
#pragma once
#include "GameFramework/Actor.h"
#include "Camera/CameraComponent.h"
#include "GameFramework/SpringArmComponent.h"
#include "ArmCamera.generated.h"
UCLASS()
class UArmCamera : public USpringArmComponent
{
GENERATED_BODY()
public:
UArmCamera() {
}
virtual void BeginPlay() override {
Super::BeginPlay();
};
private:
AActor *TrgActor; //!< 追尾対象
UCameraComponent* CameraComponent; //!< カメラ
#define _CAMERA_ARM_NAME "UArmCamera_Arm" //オブジェクトの名前
#define _CAMERA_NAME "UArmCamera_Camera" //オブジェクトの名前
public:
UCameraComponent* GetCamera() { return CameraComponent; }
AActor *GetTrgActor() { return TrgActor; }
///カメラの移動
FRotator AddRotation(float x, float y) {
FRotator Rot = { 0,0,0 };
float yaw = x * 1.0f;// 左右
float pitch; // 上下
{
pitch = y * 1.0f;
FRotator rot = GetRelativeRotation();
if (rot.Pitch + pitch > 50) {
pitch = 50 - rot.Pitch;
}
if (rot.Pitch + pitch < -80) {
pitch = -80 - rot.Pitch;
}
}
AddRelativeRotation(FRotator(pitch, yaw, 0.f));
return Rot;
}
///カメラ向きの設定
void SetRotation(FRotator Rot) {SetRelativeRotation(Rot);}
public:
static UArmCamera *Create(AActor * Actor) {
static const float arm_length = 350; // アームの長さ(対象とカメラの距離)
static const float def_pitch = -70.0f; // 見下ろす角度
AActor * TrgActor = Actor;
UArmCamera* CameraArm = nullptr; //!< カメラのアーム部分
UCameraComponent* CameraComponent = nullptr; //!< プレイヤー用カメラ
//カメラを作成:カメラとカメラアーム
{
// アームの作成
{
CameraArm = NewObject< UArmCamera >(TrgActor, _CAMERA_ARM_NAME);
if (!CameraArm) {
return nullptr;
}
CameraArm->RegisterComponent();
FAttachmentTransformRules AttachmentRules(EAttachmentRule::KeepRelative, false);
CameraArm->AttachToComponent(TrgActor->GetRootComponent(), { EAttachmentRule::KeepRelative, false }); //ルートにアームを接続
CameraArm->TargetArmLength = arm_length; // キャラクタまでのデフォルト距離
CameraArm->SetRelativeRotation(FRotator(def_pitch, 0.f, 0.f)); // 見下ろす角度
CameraArm->SetUsingAbsoluteRotation(true); //false だと常にキャラの背中なる
//追随のレート(遅延レート)
CameraArm->bEnableCameraLag = true;
CameraArm->CameraLagSpeed = 10.0f;// 0.125f;
}
// カメラの作成&カメラをアームに接続
{
CameraComponent = NewObject< UCameraComponent >(TrgActor, _CAMERA_NAME);
if (!CameraComponent) {
return nullptr;
}
CameraComponent->RegisterComponent();
FAttachmentTransformRules AttachmentRules(EAttachmentRule::KeepRelative, false);
CameraComponent->AttachToComponent(CameraArm, AttachmentRules); //アームにカメラを接続
CameraComponent->bUsePawnControlRotation = false; //キャラの回転に影響されない?
CameraComponent->SetRelativeRotation(FRotator(0.f, 0.f, 0.f)); // アームの回転に追従
CameraComponent->SetRelativeLocation(FVector(0.f, 0.f, 0.f)); // カメラ位置の修正
}
}
// メンバーを設定する
{
CameraArm->TrgActor = Actor;
CameraArm->CameraComponent = CameraComponent;
}
return CameraArm;
}
};
Createを呼び出してインスタンス作成します。
static UArmCamera *Create(AActor * Actor);
カメラをプレイヤーコントローラに接続
プレイヤーコントローラ(ACppPlayerController)を修正していきます。
headerの変更
CppPlayerController.hにclass UArmCamera
のポインタを追加します。
/**
* @file CppPlayerController.h
* @brief プレイヤーコントローラー
* @author inuvatico
* @date 2020/10/17
* @version 1.0
* @copyright 2020 inuvatico
* Released under the MIT license.
* see https://opensource.org/licenses/MIT
* @par (new/Add/Change : 2020/10/17)
*
*/
#pragma once
#include "CoreMinimal.h"
#include "GameFramework/PlayerController.h"
#include "CppPlayerController.generated.h"
//クラスの前方宣言
class UArmCamera;
//========================================================================
/// プレイヤーコントローラー
//========================================================================
UCLASS()
class ACppPlayerController : public APlayerController
{
GENERATED_BODY()
protected:
virtual void BeginPlay() override;
public:
ACppPlayerController();
virtual void Tick(float DeltaTime) override;
protected:
UArmCamera *ArmCamera = nullptr; //!< アームカメラのポインタ
};
cppの変更
UArmCameraを実装します。
CppPlayerController.cppのBeginPlay()でUArmCamera::Create
を呼び出します。
* @copyright 2020 inuvatico
* Released under the MIT license.
* see https://opensource.org/licenses/MIT
* @par (new/Add/Change : 2020/10/17)
*
*/
#include "CppPlayerController.h"
#include "../../../uty/ArmCamera.h"
//----------------------------------------------------------------
/// コンストラクタ
//----------------------------------------------------------------
ACppPlayerController::ACppPlayerController() {
PrimaryActorTick.bCanEverTick = true; //Tickが呼ばれるようにする
}
//----------------------------------------------------------------
/// BeginPlay()
//----------------------------------------------------------------
void ACppPlayerController::BeginPlay() {
Super::BeginPlay();
AActor *TrgActor = (AActor *)GetCharacter();//プレイヤーキャラクタを取得
if (!TrgActor) return;
// カメラをセットアップする
ArmCamera = UArmCamera::Create((AActor *)TrgActor);
}
//----------------------------------------------------------------
///Tick 毎フレーム呼び出される
//----------------------------------------------------------------
void ACppPlayerController::Tick(float DeltaTime) {
if (GEngine)
GEngine->AddOnScreenDebugMessage(-1, 1.0f / 60.f, FColor::Orange, FString::Printf(TEXT("Tick")));
}
実行

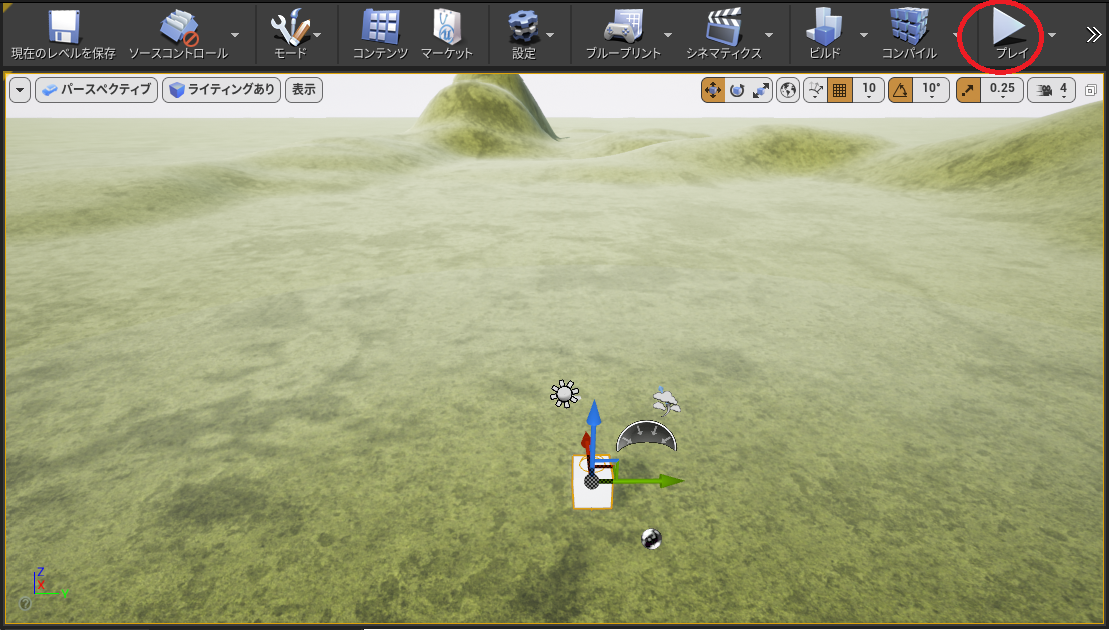

プレイボタン押します。

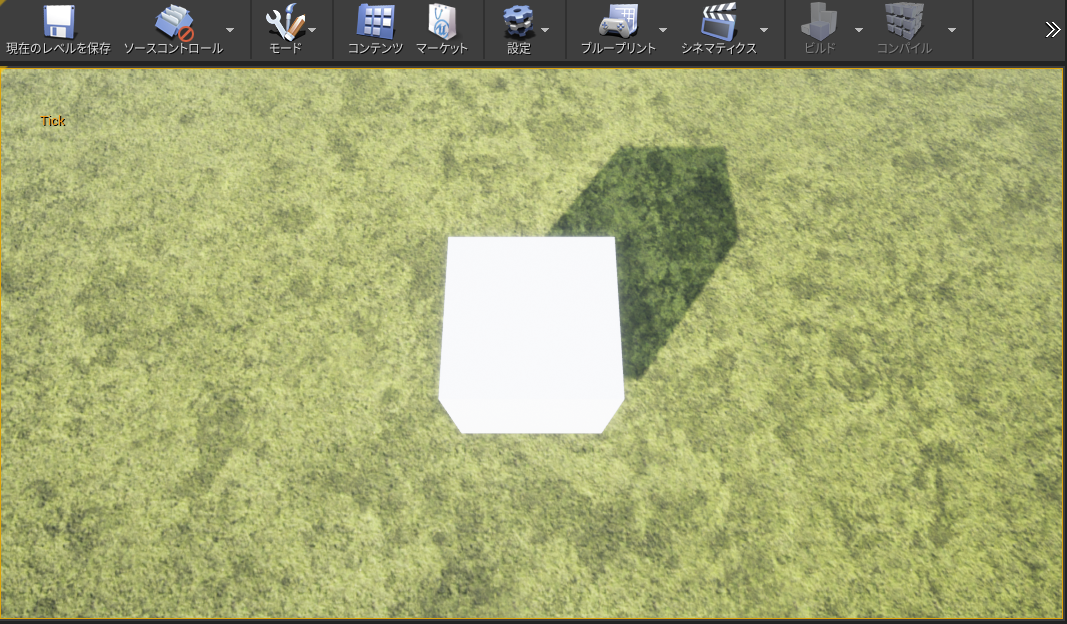

表示が変わればOKです。
